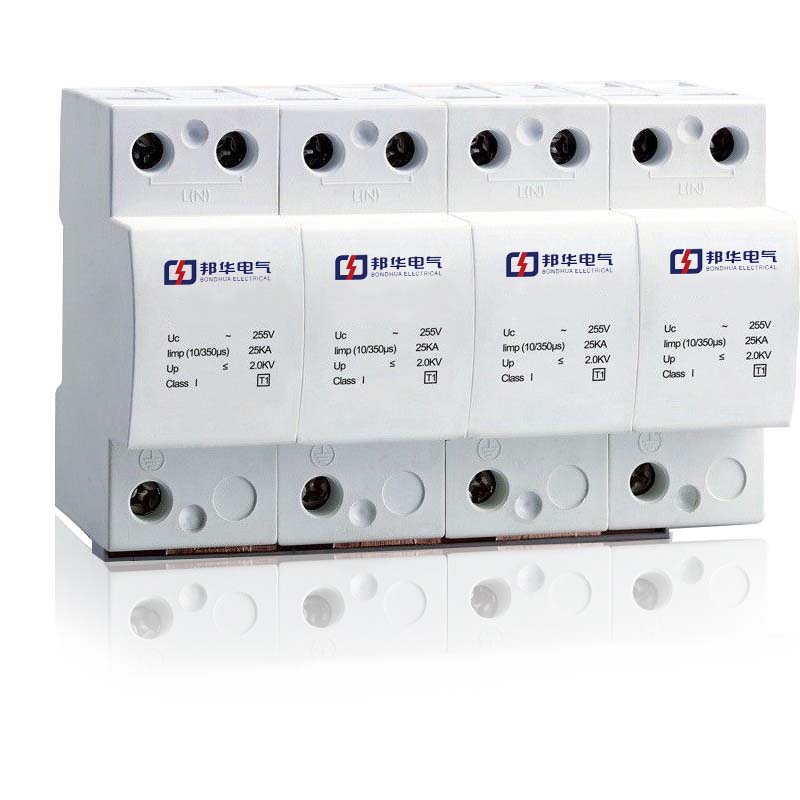

HMO125-I /4P 浪涌保護器
閱讀次數：4276 發布時間：2023-05-11
HMO系列浪涌選型參數表
| 所屬類別 | 型號名稱 | 主要參數說明 | ||||||
| 保護模式 | Uc(V) | Imax(kA) | In(kA) | Up(kV) | Iimp(kA) | 實驗類別 | ||
| 第1級（低風險）產品型號目錄 | ||||||||
| 電源 | HMO125-I /1P | / | 385 | / | / | 1.8 | 25 | T1 |
| HMO125-I /2P | L-PE/N-PE | 385 | / | / | 1.8 | 25 | T1 | |
| HMO125-I /3P | L-PE | 385 | / | / | 1.8 | 25 | T1 | |
| HMO125-I /4P | L-PE/N-PE | 385 | / | / | 1.8 | 25 | T1 | |
| FNO125-I /1P | / | 385 | / | / | 1.8 | 25 | T1 | |
| FNO125-I /2P | L-PE/N-PE | 385 | / | / | 1.8 | 25 | T1 | |
| FNO125-I /3P | L-PE | 385 | / | / | 1.8 | 25 | T1 | |
| FNO125-I /4P | L-PE/N-PE | 385 | / | / | 1.8 | 25 | T1 | |
| HMO420/2P | L-PE/N-PE | 385 | 20 | 10 | 1.4 | / | T2 | |
| HMO420/3P | L-PE | 385 | 20 | 10 | 1.4 | / | T2 | |
| HMO420/4P | L-PE/N-PE | 385 | 20 | 10 | 1.4 | / | T2 | |
| FNO420/2P | L-PE/N-PE | 385 | 20 | 10 | 1.4 | / | T2 | |
| FNO420/3P | L-PE | 385 | 20 | 10 | 1.4 | / | T2 | |
| FNO420/4P | L-PE/N-PE | 385 | 20 | 10 | 1.4 | / | T2 | |
| HMO440/2P | L-PE/N-PE | 385 | 40 | 20 | 1.5 | / | T2 | |
| HMO440/3P | L-PE | 385 | 40 | 20 | 1.5 | / | T2 | |
| HMO440/4P | L-PE/N-PE | 385 | 40 | 20 | 1.5 | / | T2 | |
| FNO440/2P | L-PE/N-PE | 385 | 40 | 20 | 1.5 | / | T2 | |
| FNO440/3P | L-PE | 385 | 40 | 20 | 1.5 | / | T2 | |
| FNO440/4P | L-PE/N-PE | 385 | 40 | 20 | 1.5 | / | T2 | |
| HMO480/2P | L-PE/N-PE | 385 | 80 | 40 | 2 | / | T2 | |
| FNO440/3P | L-PE | 385 | 80 | 40 | 2 | / | T2 | |
| FNO440/4P | L-PE/N-PE | 385 | 80 | 40 | 2 | / | T2 | |
| FNO480/2P | L-PE/N-PE | 385 | 80 | 40 | 2 | / | T2 | |
| FNO480/3P | L-PE | 385 | 80 | 40 | 2 | / | T2 | |
| FNO480/4P | L-PE/N-PE | 385 | 80 | 40 | 2 | / | T2 | |
| HMO1100/1P | L/N-PE | 385 | 120 | 60 | 2 | / | T2 | |
| FNO1100/1P | L/N-PE | 385 | 120 | 60 | 2 | / | T2 | |
